1939 Plasma Tube Photos

Research > Aubrey Scoon

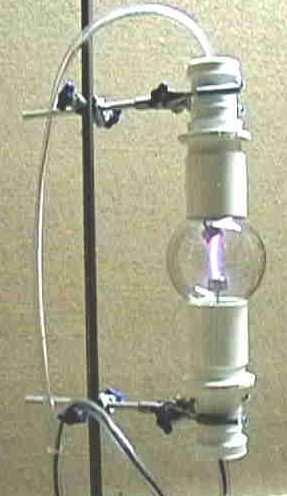

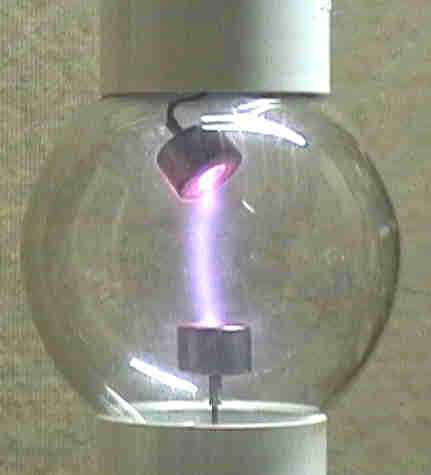

The photographs below show two views of the Nazarov phanotron running on the Beam Ray Machine

Nazarov phanotron running on the Beam Ray Machine
Nazarov phanotron running on the Beam Ray Machine

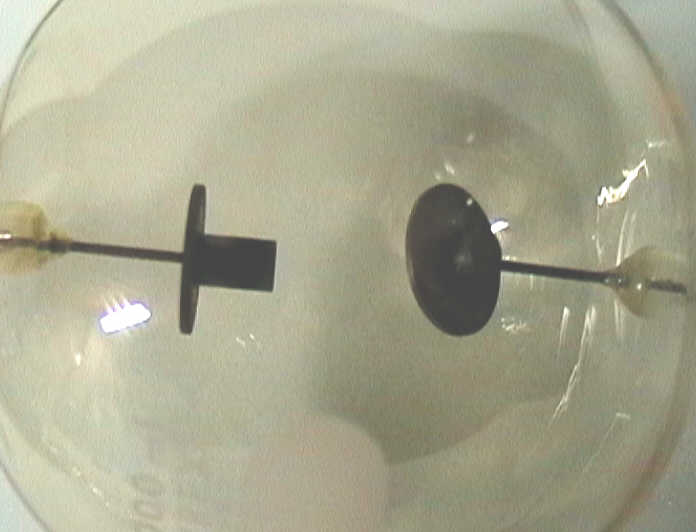

closeup of the electrodes of the original plasma tube
And here is a closeup of the electrodes of the original plasma tube.

Inside the Beam Rays Machine

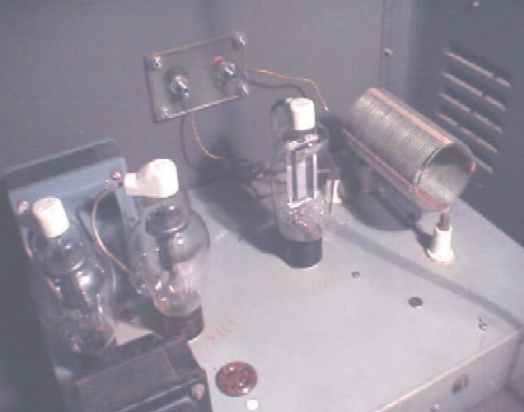

The picture below is of the output stage of the machine. The tank coil can be clearly seen on the right with the 812 output triode next to it. The output jacks are in the centre top. The HT transformer is at the back left with the two 866 mercury vapour rectifiers in front of it. Picture courtesy of Stuart Andrews.

output stage of the Rife machine

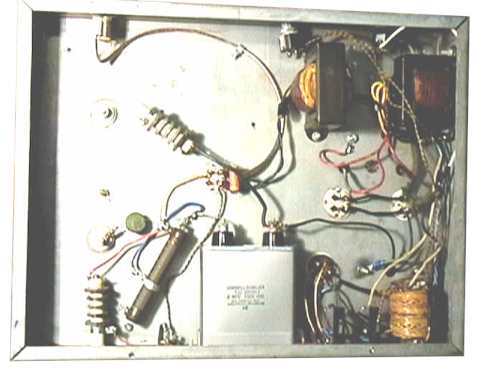

The next photo is the underside of the output stage (note that some components on both stages had to be replaced with modern ones to get the machine working because the originals had deteriorated too much).

underside of the output stage
underside of the oscillator stage

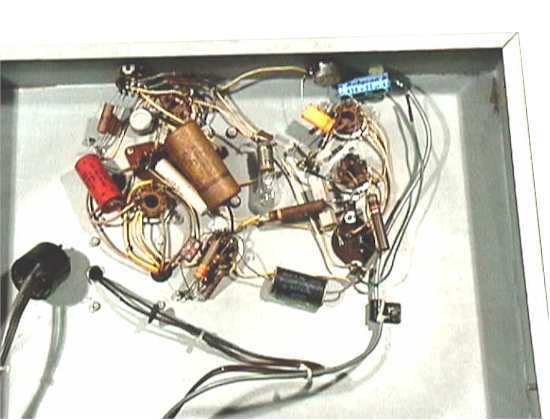

And this is a photo of the underside of the oscillator stage:
